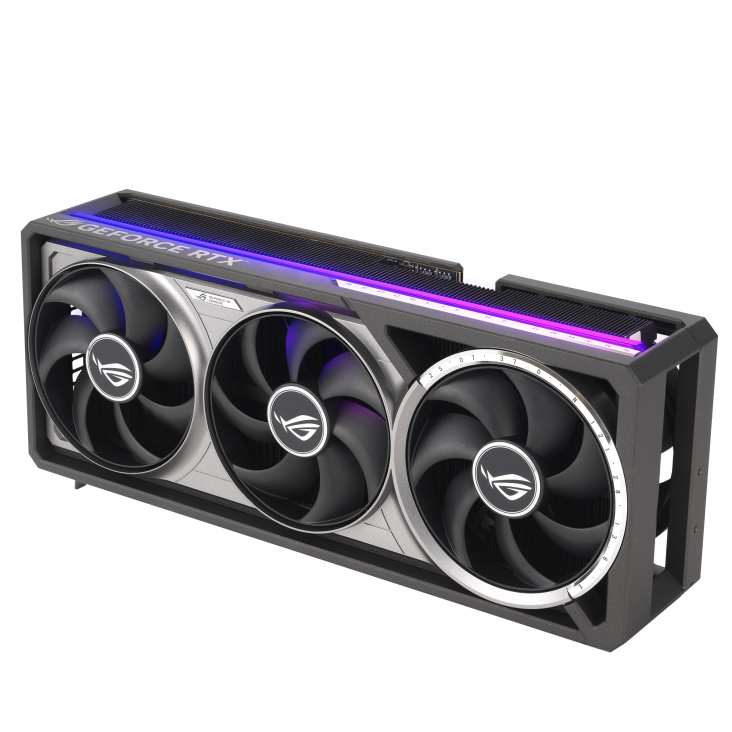

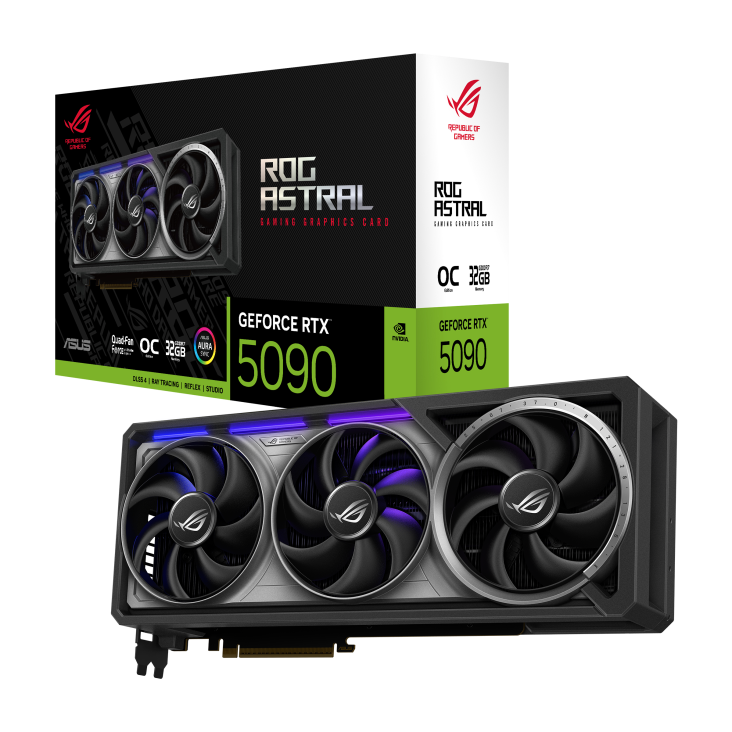

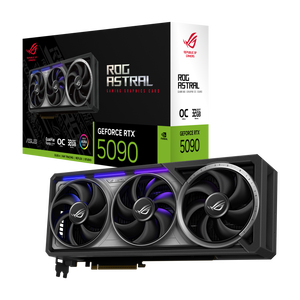

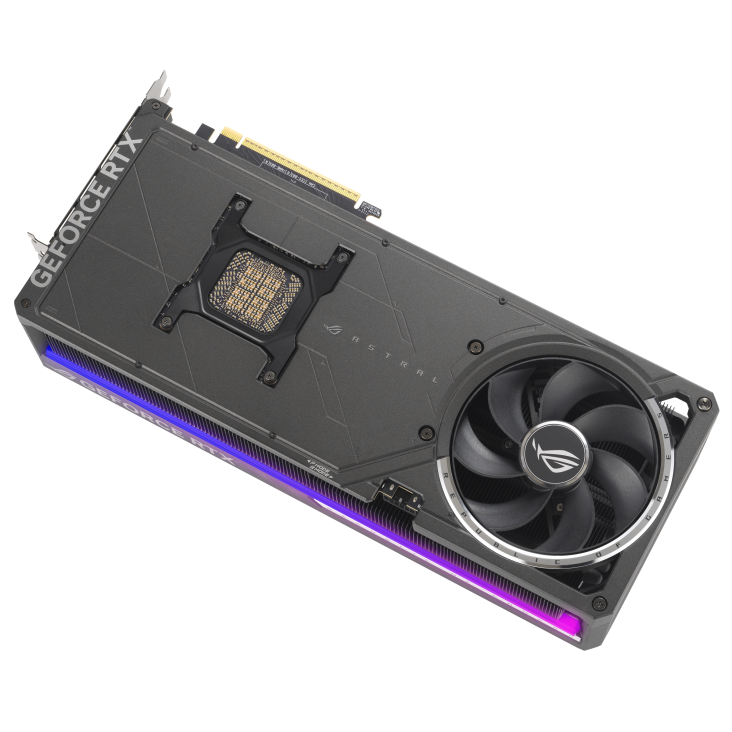

ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 OC Edition Gaming Graphic Card - HDMI, DisplayPort

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

Quad-Fan Force:
A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.

Patented Vapor Chamber:
A patented vapor chamber designed with milled pathways allows heatpipes to sink in without flattening, boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by over 10%.

MaxContact Design:
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad:
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Premium Power Delivery:
Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.

ASUS GPU Guard & Bracket:
To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating:
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto−Extreme Technology:
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

• Graphic Engine: NVIDIA GeForce RTX 5090
• AI Performance: 3593 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL4.6
• Video Memory: 32GB GDDR7
• Engine Clock: OC mode: 2610 MHz; Default mode: 2580 MHz(Boost clock)
• CUDA Core: 21760
• Memory Speed: 28 Gbps
• Memory Interface: 512-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface: x 2 (Native HDMI 2.1b), x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions: 357.6 x 149.3 x 76 mm
• Recommended PSU: 1000W
• Power Connectors: 1 x 16-pin
• Slot: 3.8 Slot
• AURA SYNC: ARGB

• 1 x ASUS ROG Astral GeForce RTX 5090
• 1 x Speedsetup Manual
• 1 x ROG Graphics Card Holder
• 1 x ROG Velcro Hook & Loop
• 1 x ROG Magnet
• 1 x ROG Graphics Card Keycap
• 1 x ROG PCB Ruler
• 1 x Thank You Card
• 1 x Adapter Cable (1 to 4)
