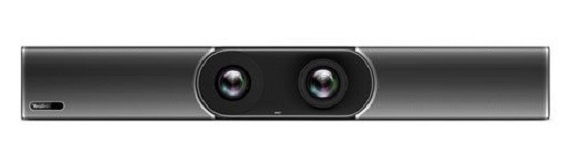

Yealink A30 Zoom Room All-in-One Meeting Bar with Built-In Microphone and CTP18 Touch Console

Based on Android 9.0 OS, the all-in-one Yealink MeetingBar A30 brings dedicated medium space meetings for Zoom. Designed in a dual-camera system with an AI-powered camera along with the 8 MEMS microphone arrays and speakers, the MeetingBar A30 delivers the enhanced smart video and HD audio perfectly.

AI-powered Camera. Stay Focused, Keep Centered
With the dual-camera design, the AI technology in the MeetingBar A30 features the Auto Framing and Speaker Tracking, delivering an accurate panoramic analysis and image output. The camera automatically adjusts to the best view according to the attendees' quantity and location.

8MP Sensor
Equipped with Qualcomm Snapdragon 845, A30 has strong image processing, encoding and decoding capabilities. The 8 MP camera features a high-quality video performance.

120° Field of view
The 120° Field of view in one camera captures widely for accurate image analysis, bringing enhanced video experience in medium-sized meeting rooms.

10X optical & digital HD Zoom
The 10X hybrid zoom ensures attendees can be captured even in medium-sized rooms without stretch or deformation and distant participants still clearly exquisite.

Full-Duplex HD. Audio Experience
With Yealink Noise Proof Technology, acoustic echo cancellation, and dereverberation, the A30 with built-in 8 MEMS microphone arrays and two speakers allows users to enjoy a full-duplex voice experience seamlessly without interruption and talking freely in a comfortable way.

Quick setup and Easy to Manage
With the all-in-one design and plug-and-play feature, the deployment for the MeetingBar A30 takes up less space and minimizes the cable clutter.

Dual Camera System
• Wide Camera: 8MP Camera, Field of view: 120°, 4x e-PTZ Camera
• Telephoto Camera: 8MP Camera, Field of view: 90°, 10x Hybrid Zoom (3.5x optical, 3x digital), Horizontal Rotation Angle: +25°/-25°, Vertically Rotation Angle: +16°/-16°
• Electric Privacy Shutter
• Intelligence Features: Auto Framing, Speaker Tracking

Audio
• Built-in 8 MEMS microphone array
• Support extention mic
• Two Built-in 5W high fidelity speaker
• Yealink Noise Proof Technology
• Beamforming directed voice pickup technology
• Full-duplex
• Echo cancellation

Operating System
• Android 9.0

Video Standard and Network Suitability
• Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features
• Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Built-in Bluetooth
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X: EAP-MD5/EAP-TLS, PEAP-MSCHAPv2, EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP

Connections
• 2x HDMI output (CEC supported)
• HDMI input (through the VCH51 Sharing Kit)
• 1x Line-in (3.5mm)
• 1x Line-out (3.5mm)
• 2x USB 2.0
• 1x 10/100M/1000M Ethernet port
• 1x Yealink extension port (RJ-45)
• 1x Power port
• 1x Security lock slot
• 1x Reset slot

Power
• External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
• USB Output: 5V 0.5A
• Power consumption (PSU): Idle < 13W; Normal operating: 15W; MAX: 16W
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C

Physical
• Dimension (W.D.H): 700 x 98 x 121 mm
