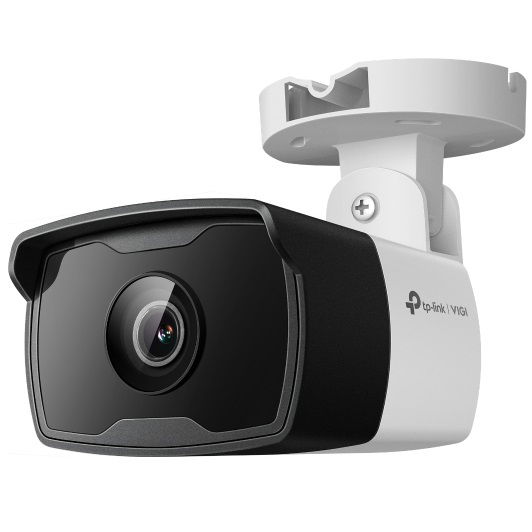

TP-Link VIGI C340I 4MP 4mm Outdoor IR Fixed Lens Bullet Network Camera

The VIGI C340I camera comes with 4MP - more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification:
Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection:
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Smart Video Enhancement:
VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

H.265+:
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Waterproof:
Reliable IP67 for stable outdoor performance.

PoE/12V DC:
Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

2.8/4/6 mm Lens:
Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.

Flexible Management:
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Camera:

• Image Sensor: 1/3” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Day/Night/Auto/Schedule-Switch
• Lens: 4 mm
• Aperture: F2.2
• Lens Mount M12
• Viewing Angle: 75.1°/41.5°/88.7°(H/V/D)
• IR Working Distance: 30m
• Weatherproof Rating: IP67
• Digital Noise Reduction: 3D DNR
• WDR: DWDR

Lens:

• Type: Fixed Focal Lens
• Focal Length: 4 mm
• Aperture: F2.0
• Horizontal FOV: 75.1°
• Vertical FOV: 41.5°
• Diagonal FOV: 88.7°
• Lens Mount: M12
• DORI Distance: Detect: 80 m (262 ft); Observe: 33 m (109 ft); Recognize: 16 m (52 ft); Identify: 8 m (26 ft)

Video:

• Max. Resolution: 2560 × 1440
• Main Stream Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Sub-Stream Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution: 640x480, 352x288, 320x240
• Bit Rate Control: CBR, VBR
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps

Illuminator:

• IR LED: Quantity: 2; Range: 30m; Wavelength: 850nm
• White LED: N/A
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Angle Adjustment (Manual):

• Pan: -90° to 90°
• Tilt: -90° to 90°

Image:

• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Network:

• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Network Storage: NAS (NFS, SMB/ CIFS)
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• API: ONVIF
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
• Cloud: Yes
• ONVIF: Yes

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm: N/A
• Reset Button: N/A
• Power: DC Power Port
• Button: N/A
• Video Output: N/A
• On-board Storage: N/A
• Built-in Microphone: N/A
• Built-in Speaker: N/A
• Audio: N/A

Alarm and Event Management:

• Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Linkage: Message Push
• Linkage Method: N/A
• Output Notification: Message Push

Smart Feature-Set:

• Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
• Linkage Method: Trigger Notification: ONVIF, HTTPS
• Region of Interest: 1 Region

General:

• Operating Temperature: -30–60 °C
• Storage Temperature: -40–60 °C
• Storage Humidity: 95% or Less (Non-Condensing)
• Operating Humidity: 95% or Less (Non-Condensing)
• Dimensions (H X W X D): 174 x 74 x 71 mm
• Material: Plastic
• General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
• Net Weight: 0.2 Kg
• Gross Weight: 0.35 Kg
• Power Consumption: 12V DC: Max 5W; PoE: Class 0
• Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)
• Protection: IP67
• Certifications: CE/BSMI/VCCI/ONVIF

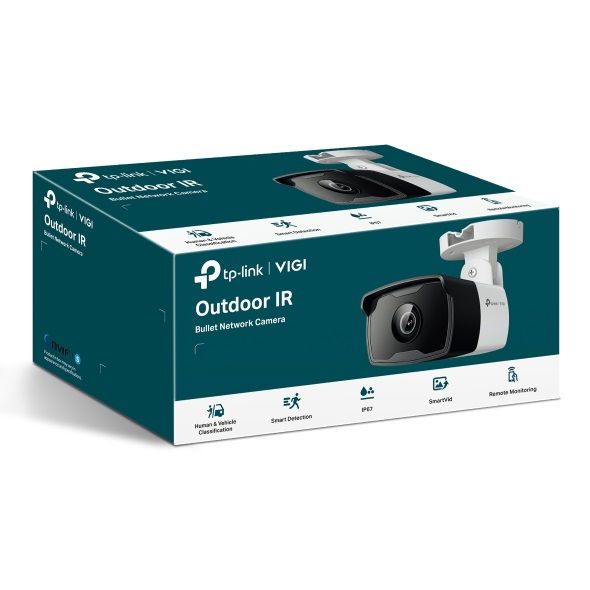

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
