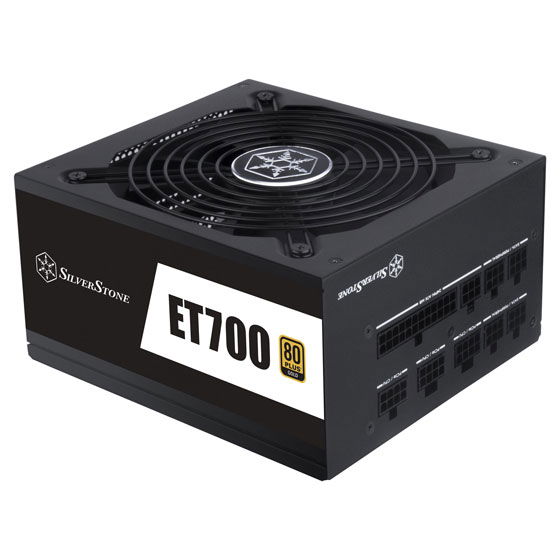

Silverstone ET700-MG 700W 80 Plus Fully Modular ATX Power Supply

Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking. Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

• High efficiency with 80 PLUS Gold certification
• 24/7 continuous power output with 40℃ operating temperature
• Class-leading single +12V rail
• Silent running 135mm fan with 18 dBA
• PCI-E 8pin and PCI-E 6pin connectors support
• Advanced fully cable management
• All-black flat cables design
• Multiple protection circuitry

• Model No.: SST-ET700-MG
• Max. DC Output: 700W
• Power density: 329W per liter
• Color: Black (Lead-Free Paint
• Combined +3.3V & +5V: 100W
• Combined +12V: 696W
• Input Voltage: 100V ~ 264V
• Input Frequency Range: 47Hz ~ 63Hz
• PFC: Active PFC (PF>0.9 at full load)
• Efficiency: 87% ~ 90% at 20% ~ 100% loading
•MTBF: 100,000 hours
• Operating temperature: 0°C ~ 40°C
• Protection: Over power protection, Over current protection, Over voltage protection, Short circuit protection, Under voltage protection, Over Temperature protection
• Connectors: 1 x 24-Pin motherboard connector（”600mm”), 2 x 8 / 4-Pin EPS / ATX 12V connector（”750mm/150mm”), 4 x 8 / 6-Pin PCIE connector（”700mm/150mm”x2), 8 x SATA connector（”600mm /150mm / 150mm/ 150mm” x2), 3 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm”）
• Cooling System: Single 135mm silent fan
• Form factor: ATX
• Noise Level: 18 dBA minimum
• Dimension: 150 mm (W) x 86 mm (H) x 165 mm (D)
• Weight: 1.5 Kg
• Certification: 80 PLUS Gold
